3M™ Nextel™ Alumina-Based Fibers & Woven Fabrics
High-Performance Ceramic Textiles for Extreme Environments
Nextel™ alumina-based fibers and woven fabrics are advanced ceramic textiles designed to perform in extreme temperature and high-stress environments where conventional materials such as fiberglass or silica fabrics cannot survive.
Engineered from high-purity alumina and alumina-silica compositions, these fibers deliver exceptional thermal stability, oxidation resistance, and mechanical strength, making them ideal for demanding aerospace, industrial, and high-temperature insulation applications.
Manufactured using continuous ceramic filaments from Nextel, these fibers are commonly woven into high-temperature fabrics, yarns, tapes, and composite reinforcements used in environments exceeding 1000°C to 1400°C.
Their superior durability under extreme thermal cycling makes them suitable for thermal protection systems, ceramic matrix composites, and industrial heat shielding.
What Are Nextel Alumina-Based Fibers?
Nextel fibers are continuous filament ceramic fibers composed primarily of alumina (Al₂O₃) and silica (SiO₂). These materials offer outstanding thermal resistance, creep resistance, and structural stability in high-temperature conditions.
Common Alumina-Based Fiber Grades
- Nextel™ 312 – Alumina-silica fiber with excellent oxidation resistance
- Nextel™ 440 – High-alumina ceramic fiber with improved high-temperature strength
- Nextel™ 610 – High-purity alumina fiber designed for ceramic matrix composites and aerospace applications
These fibers are engineered for long-term stability in oxidizing environments and maintain strength even at elevated temperatures.

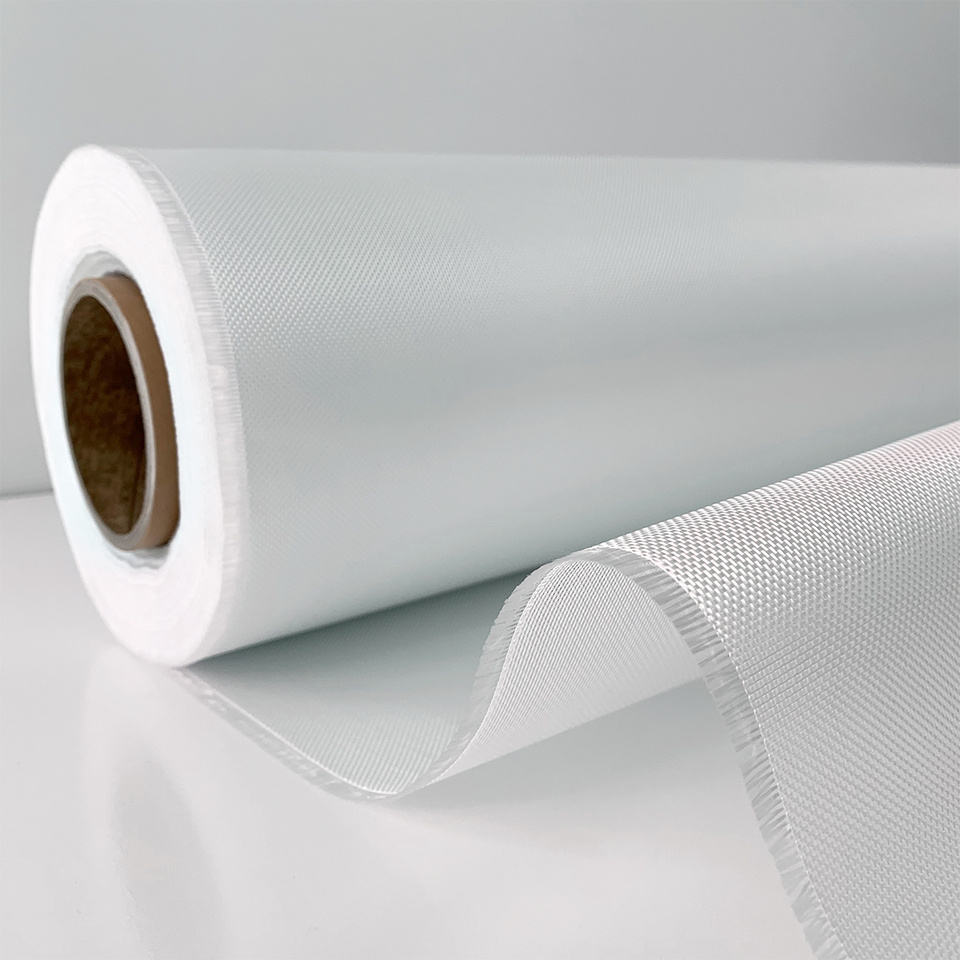

Nextel Woven Fabrics for High-Temperature Applications
Nextel alumina fibers can be woven into high-performance fabrics used for thermal insulation, structural reinforcement, and heat shielding.
Available Weave Styles
- Plain Weave – Balanced strength and flexibility
- Twill Weave – Improved drape and durability
- Satin Weave – Higher surface smoothness and composite compatibility
These woven fabrics provide excellent thermal barrier performance and mechanical reinforcement in extreme environments.
Key Features of Nextel Alumina-Based Fibers & Fabrics
- High temperature resistance up to 1200°C – 1400°C
- Excellent oxidation and chemical resistance
- High tensile strength at elevated temperatures
- Outstanding thermal shock resistance
- Non-combustible and flame resistant
- Low thermal conductivity
- Compatible with ceramic matrix composites (CMC)
Applications in Extreme Environments
Nextel ceramic fiber textiles are widely used in industries requiring advanced heat resistance and thermal protection.
Typical Applications
- Aerospace thermal protection systems
- Aircraft and jet engine insulation
- Industrial furnace and kiln insulation
- Rocket propulsion heat shields
- High-temperature composite reinforcement
- Power generation turbine insulation
- Exhaust and heat barrier systems
These materials help improve thermal protection, energy efficiency, and durability in high-temperature industrial equipment.
Benefits of Using Nextel Alumina-Based Fibers
- Superior performance in extreme heat environments
- Long-term oxidation resistance
- Excellent mechanical strength at high temperatures
- Reduced heat loss in industrial insulation systems
- High reliability for aerospace and defense applications
Frequently Asked Questions (FAQs)
